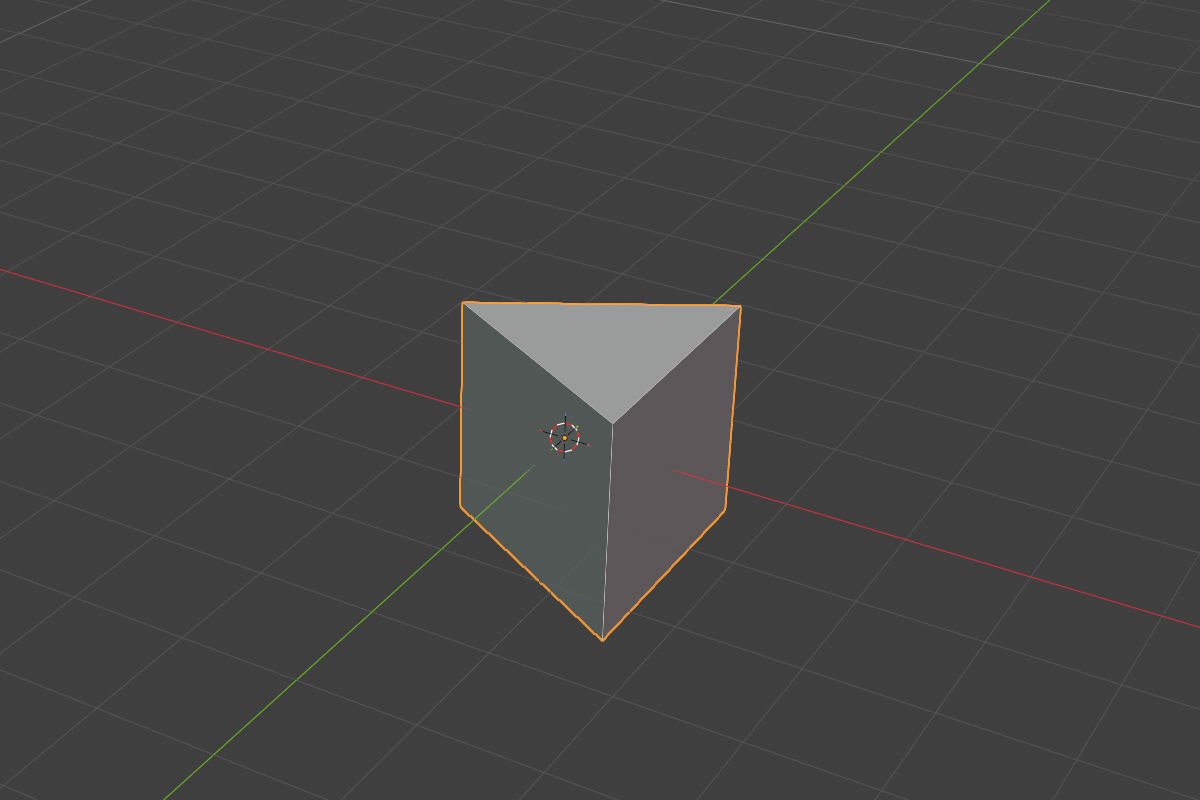

Prism

An N-sided regular prism. Set the side count with the Sides enum.

Parameters

• Sides: 3, 5, 6, or 8
• Apex Angle (triangular prisms only): 5°–175° (default 60°). Sharper or wider triangle profile.
• Bevel: vertical edge rounding, separate from the cap rounding
• Bevel Profile: Round / Sharp / Soft / Tight / Chamfer for the vertical edges
• Bevel Smooth (when Bevel Profile = Chamfer)
• Rounding + Profile: applies to the top and bottom rims

Notes

The triangular prism is the only one whose cross-section is reshapeable: Apex Angle narrows or widens the triangle without changing the side count.

Side count and apex angle both have rows in the RMB menu, so you can switch a hex to an octagon without opening the properties panel.

See also

• Ngon: an arbitrary polygon when 3/5/6/8 isn’t the shape you need
• Cylinder: the smooth-section equivalent
