Real-time SDF modeling for Blender

Carve.
DIFFERENCE.
Render.

Model with exact shapes and live joins. Round any edge or seam with one value. Surfaces stay smooth at any zoom, and the viewport ray-marches the shapes directly instead of drawing a preview mesh.

Q open the pie menu
Blender · ray-marched viewport Difference

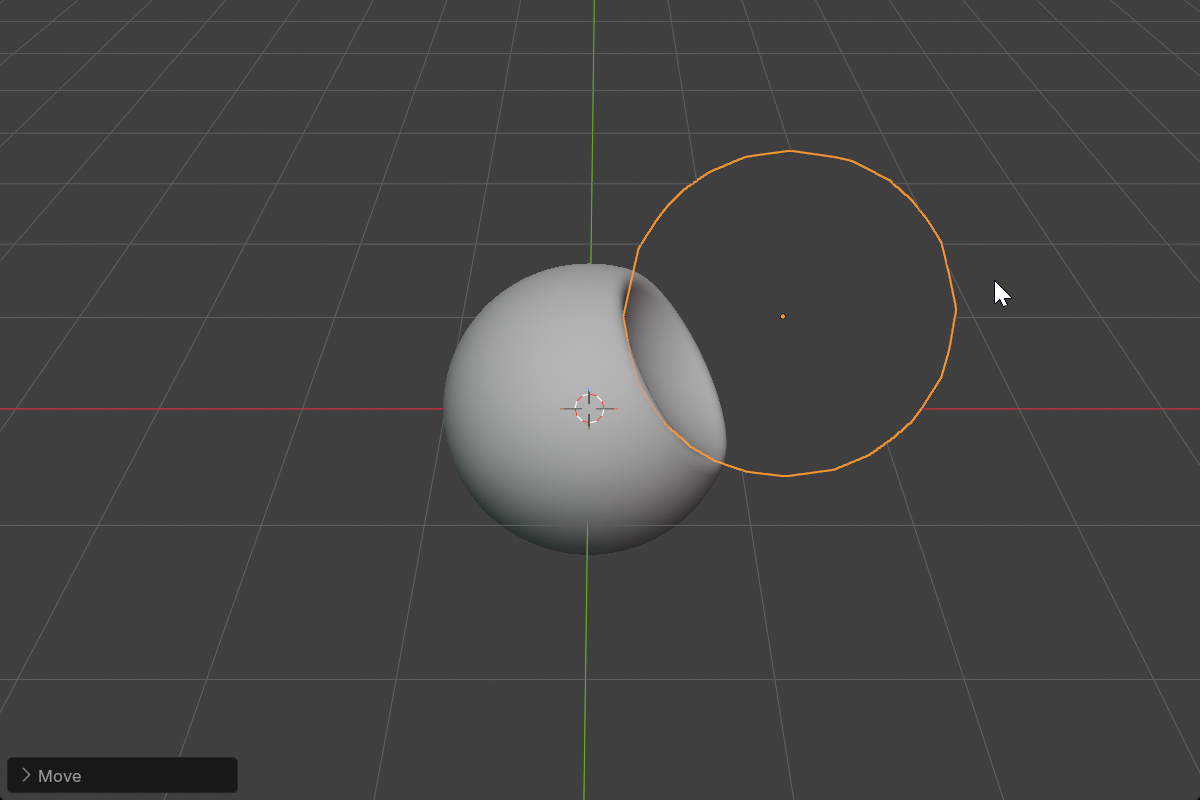

A small sphere cutting a bowl out of a larger one in the Chisel viewport
joins →
Blender 4.5.7+ & 5.x 15 shapes + any mesh Ray-marched on the GPU

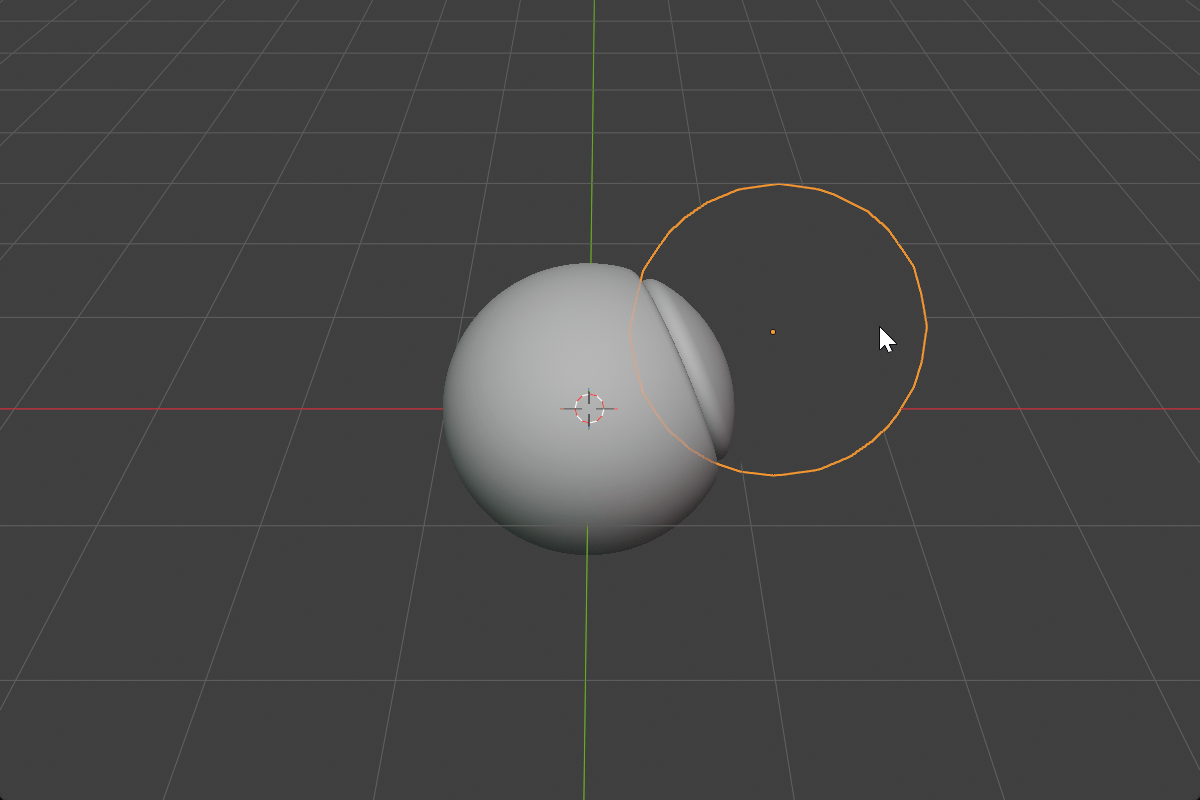

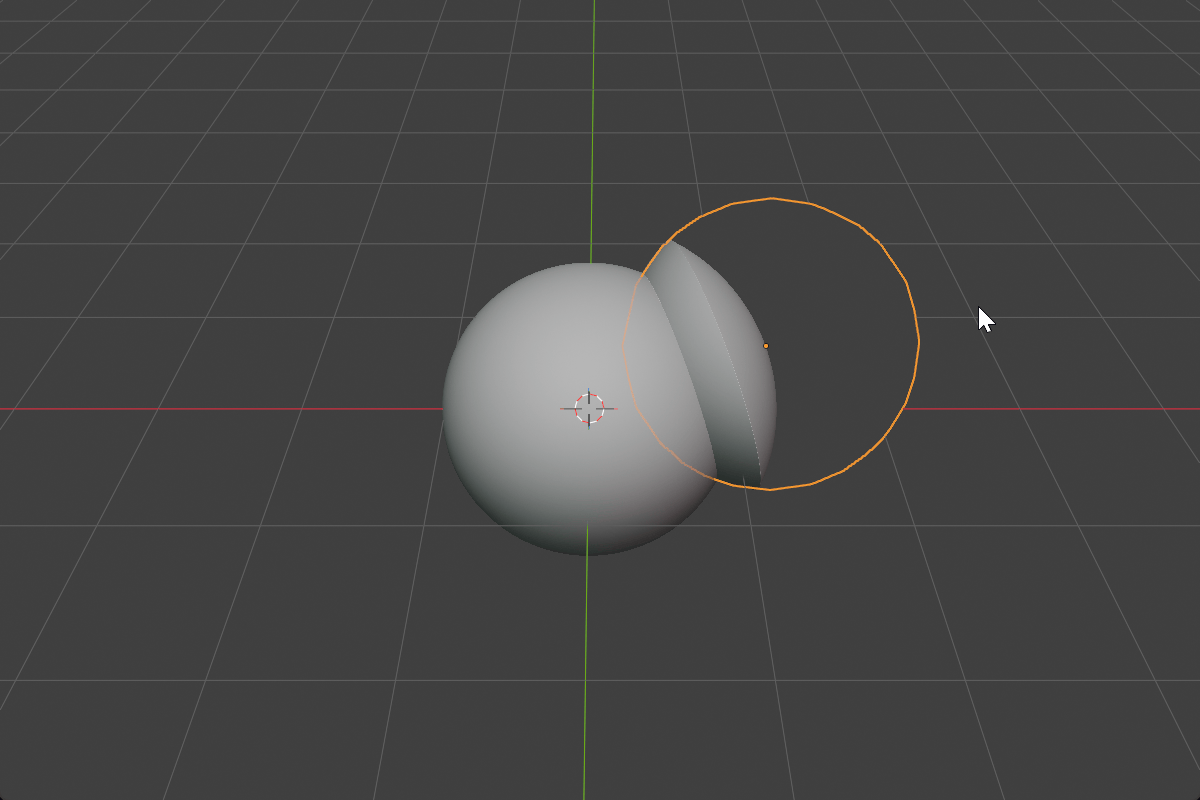

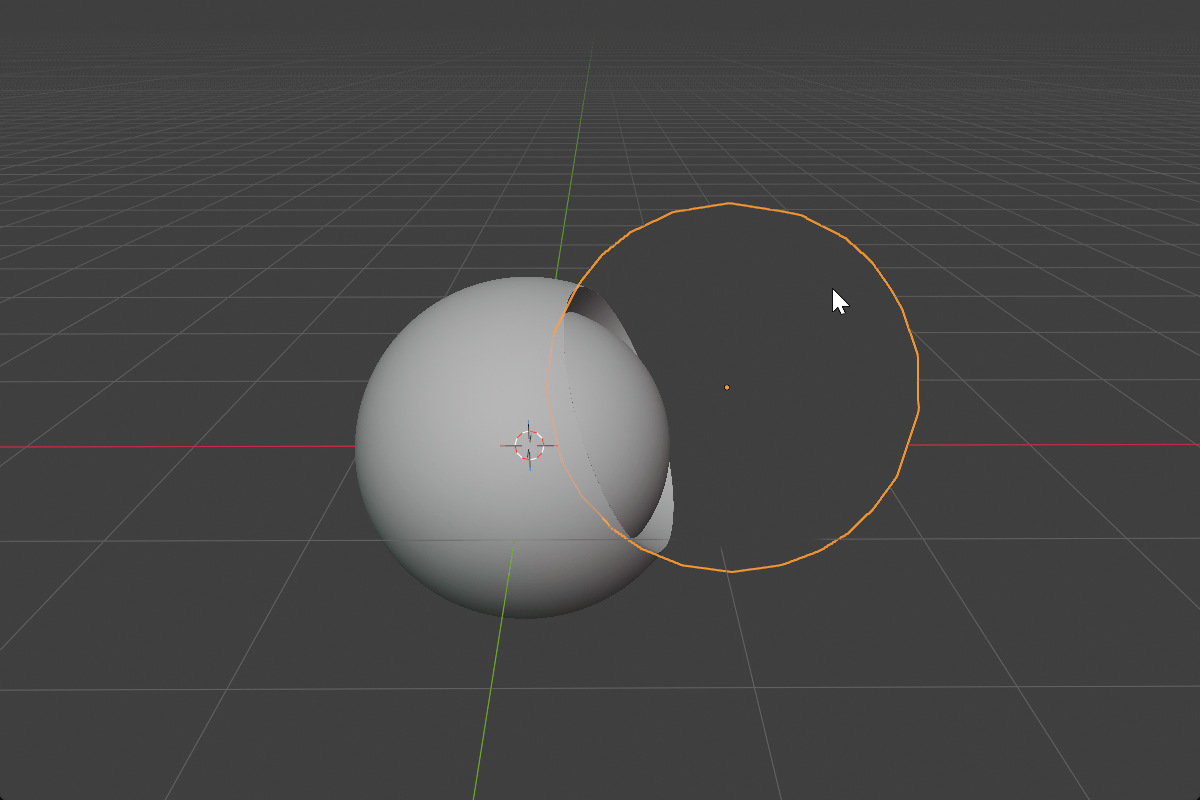

Seven joins

One stack.
Every join.

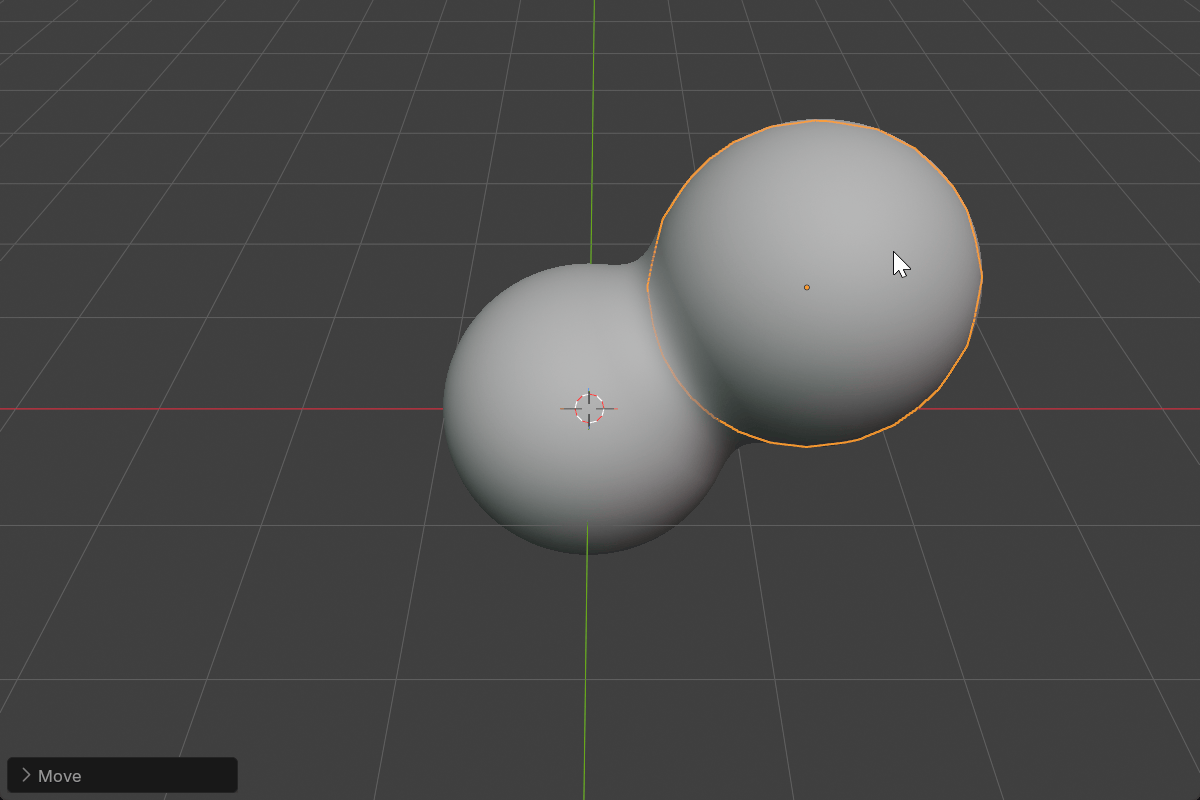

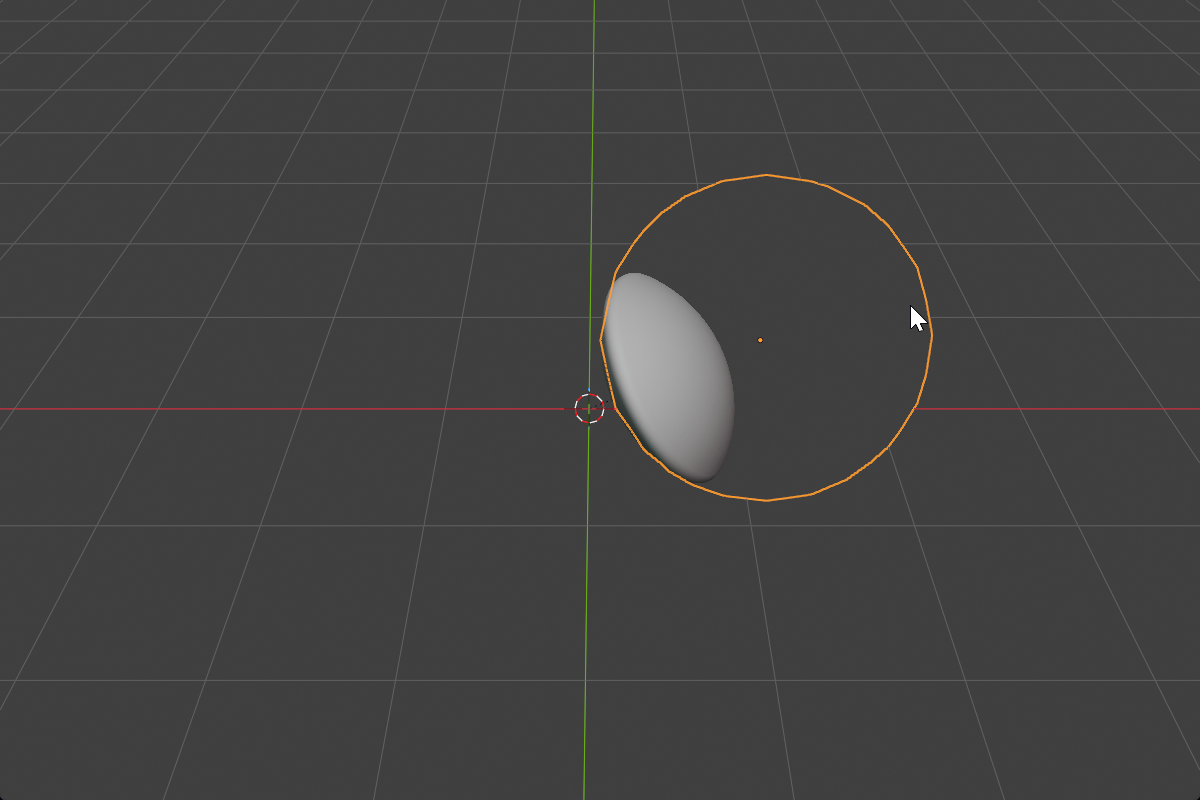

A join combines two distance fields, so the result is always one clean, closed surface. There are no faces to split and nothing to repair. Every join stays live: move the cutter and the cut follows.

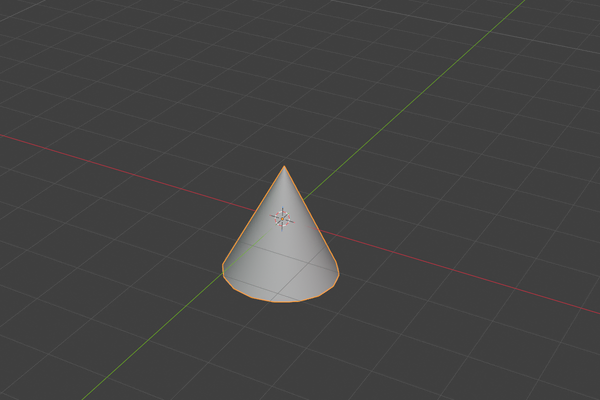

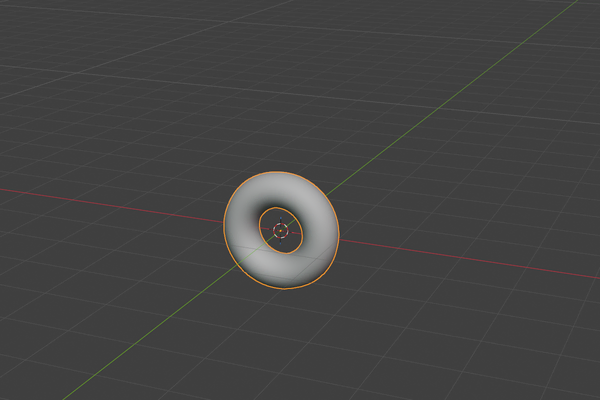

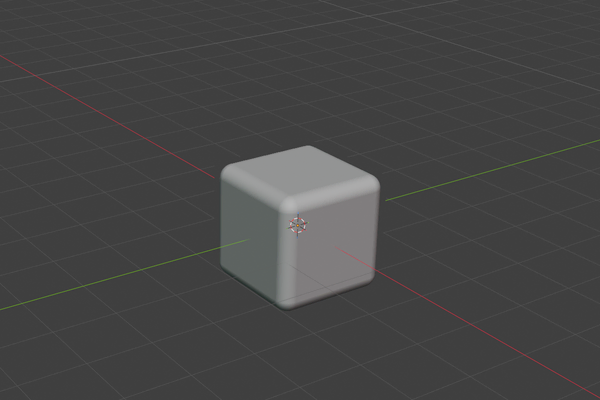

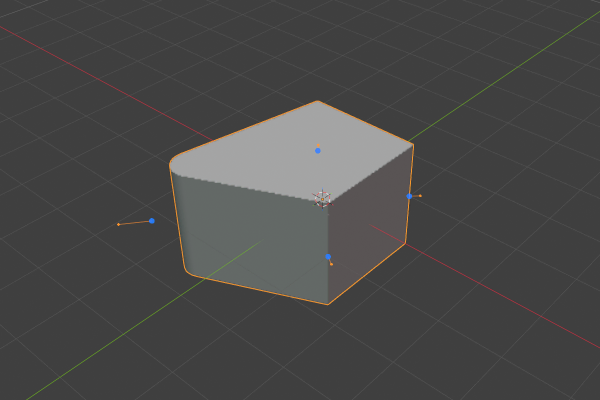

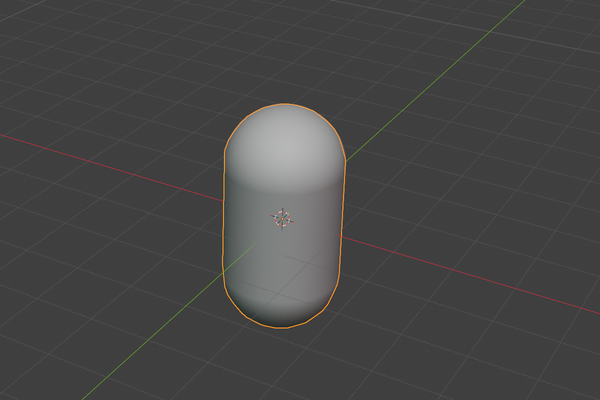

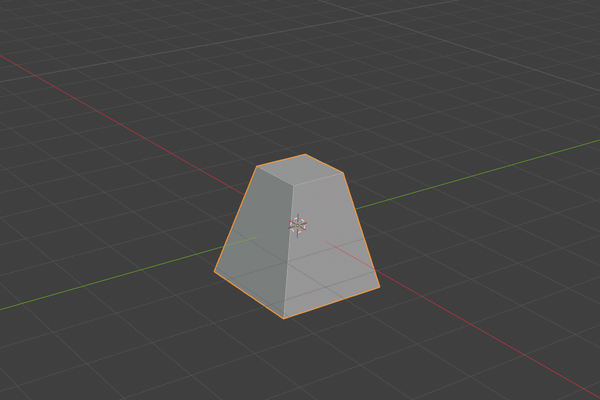

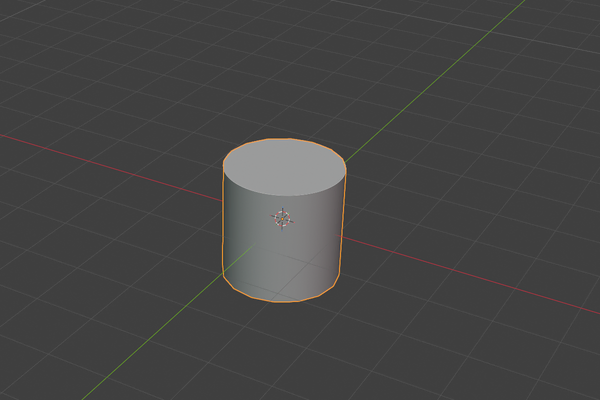

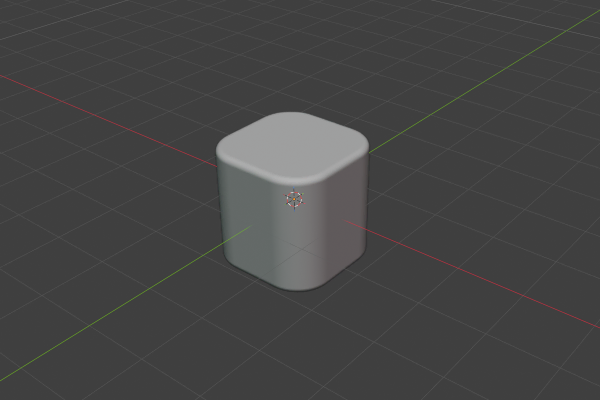

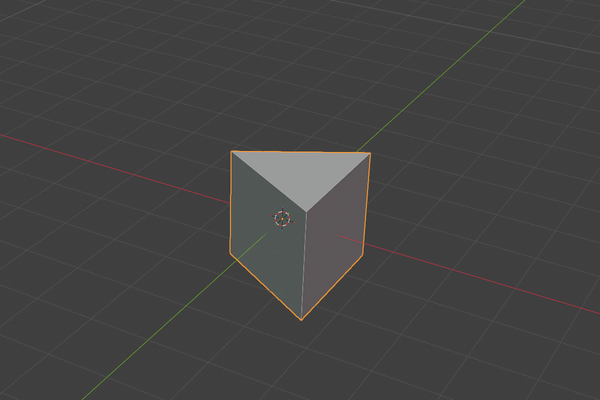

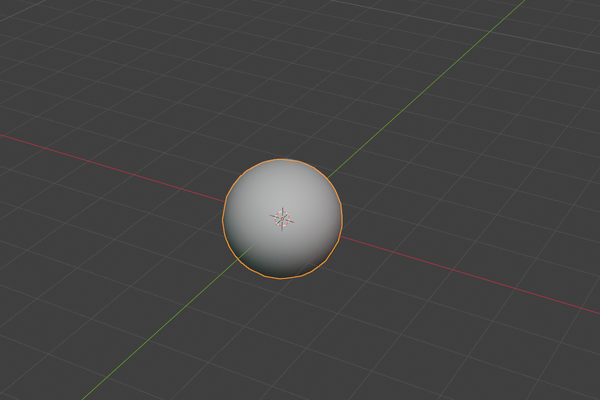

Fifteen shapes, plus any mesh

Every shape, mathematically exact.

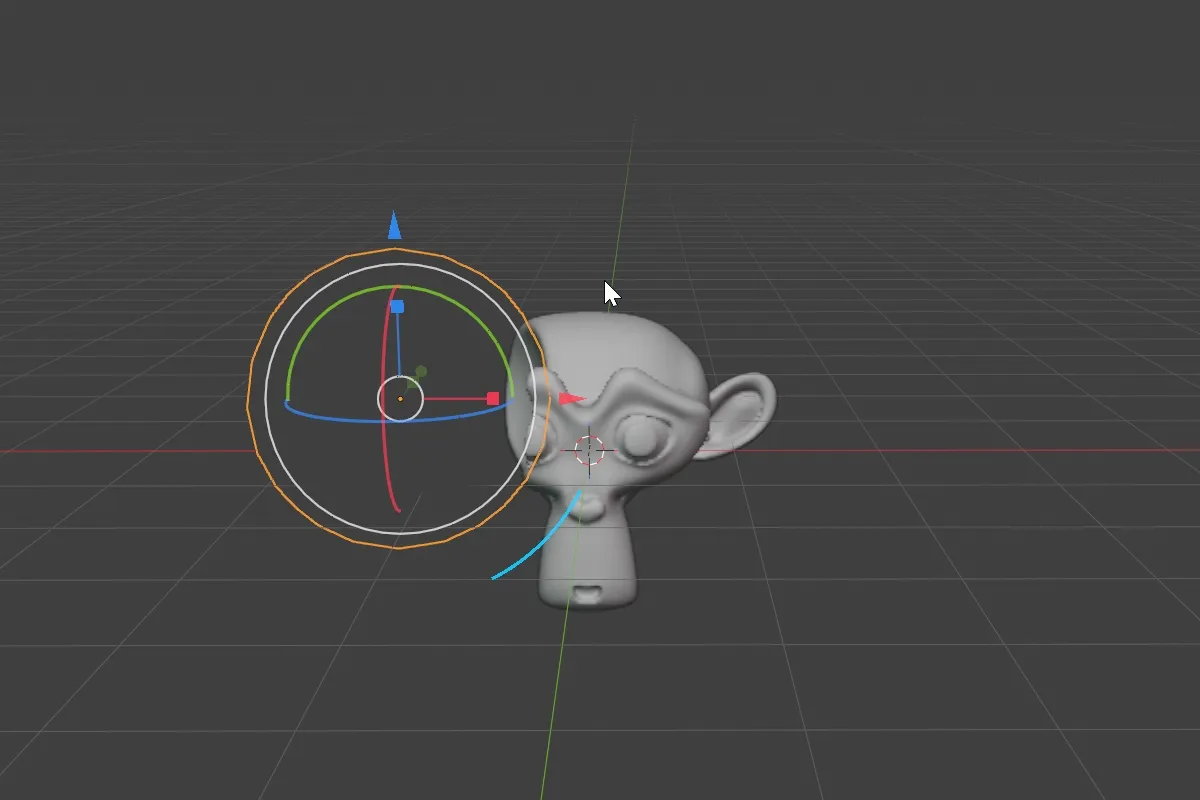

Each shape is defined by a formula, so there are no polygons, no subdivision levels and no topology to manage. Rounding is just a setting. New in 5.0: Outline, Tube, Rail and Lathe are built from points you edit in the viewport, and Text turns a Blender text object into a shape. You can also bake any mesh into a shape.

Five profiles

Pick the curve that matches the look.

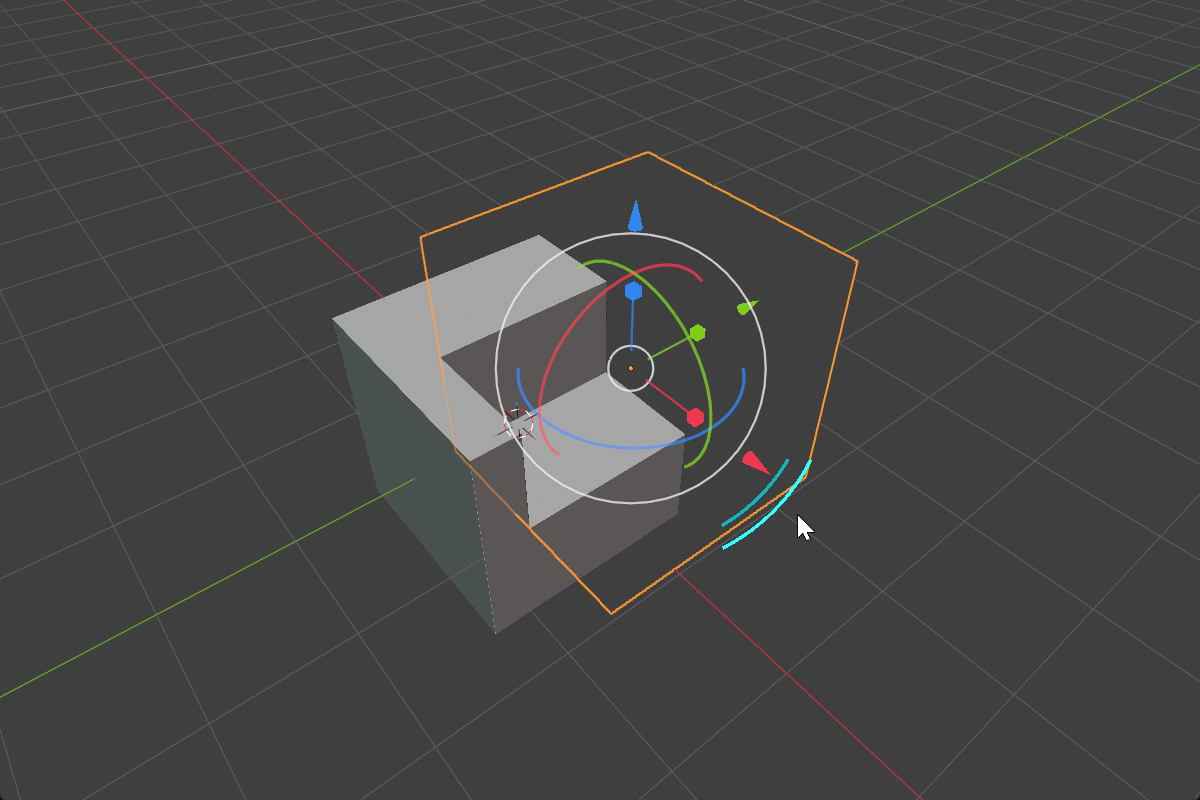

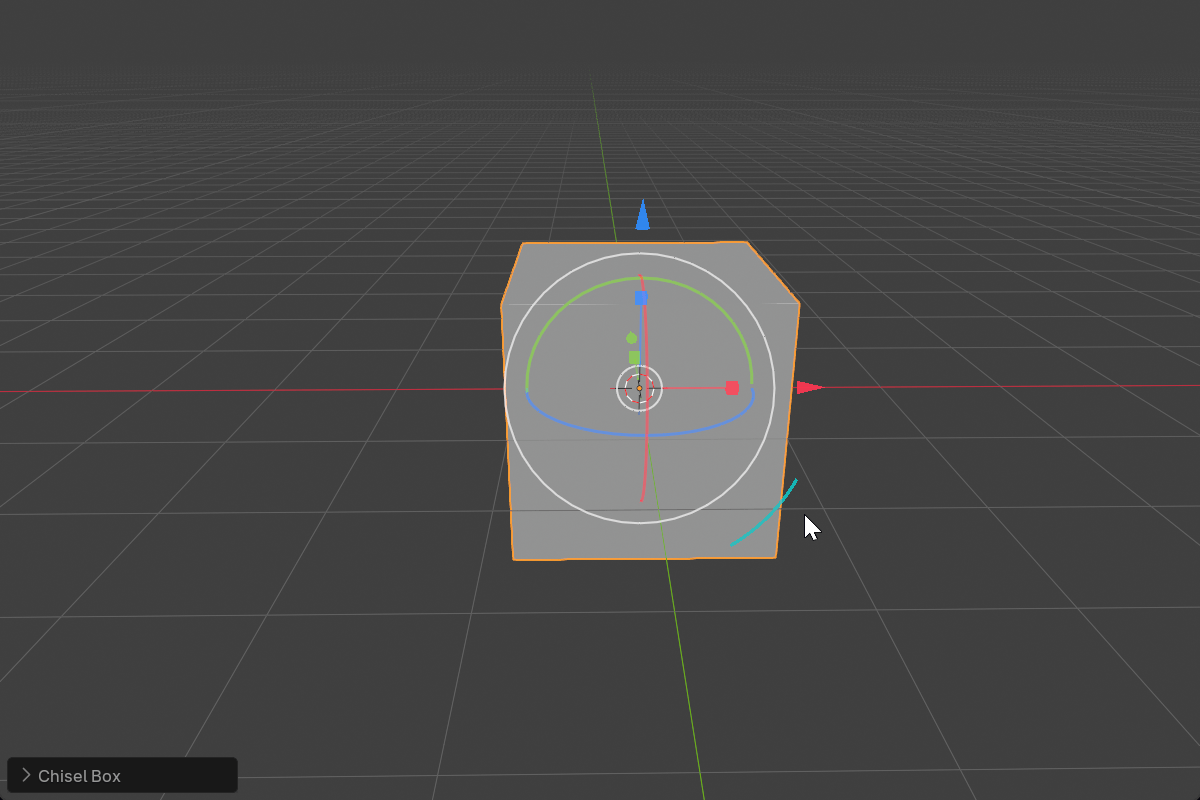

The same five profiles shape every rounding and every blend. Tap 1–5 during a rounding drag (B) or a blend drag (Ctrl + B) to switch them live.

Round profile

Round

1
Sharp profile

Sharp

2

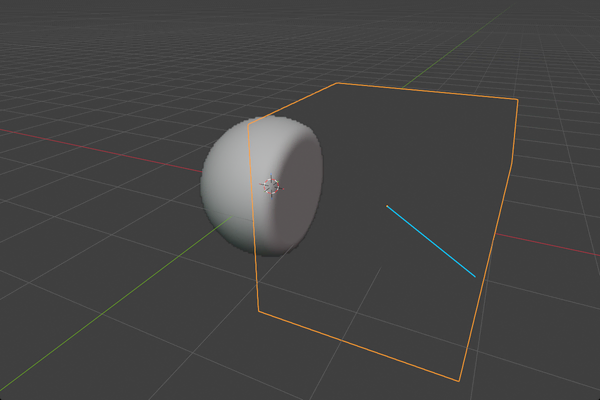

Soft profile

Soft

3

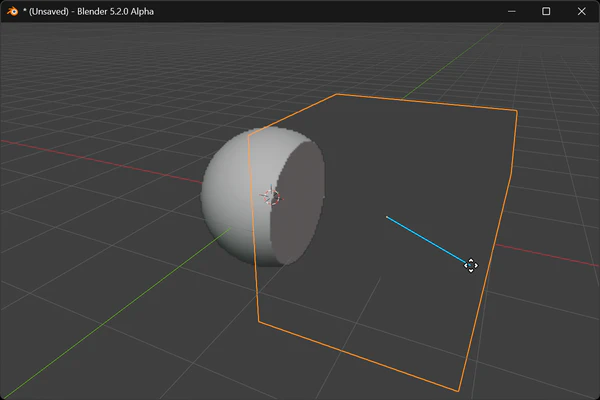

Tight profile

Tight

4
Chamfer profile

Chamfer

5
New in 5.0

Edit points.
See every cut.

Version 5.0 adds shapes built from points, an Edit mode and a Block mode for the Chisel tool, and the Tape tree, which shows the whole stack in the viewport.

Edit mode

Edit points in the viewport.

Tube, Outline, Rail and Lathe are built from points, and each point can be Smooth, Corner or Free. Press Tab with the Chisel tool to edit points: click, Shift-click or drag a box to select them, even across several shapes, and drag them together. G moves them, S scales their radius and X deletes them.

keysTabGSX

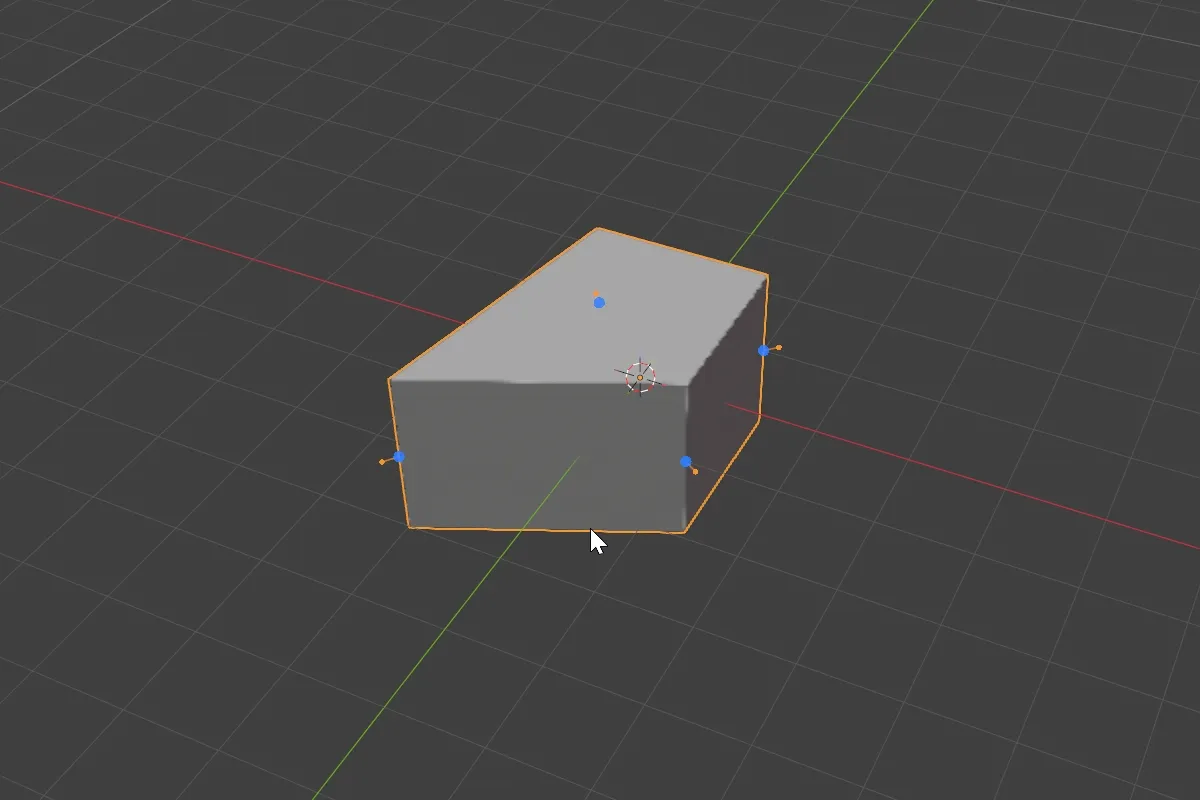

Points of a Tube and an Ngon selected together and dragged in Edit mode
Block mode

Block out boxes and cylinders.

Drag out a base on any face, pull up the height and click. While you draw, B adds a bevel or rounding and Ctrl + B a blend. The block can add to the model or cut into it, and you see the result as it grows. Its corners stay editable in Edit mode.

keysD→Block
A pocket drawn into a block in Block mode, then bevelled while drawing
Tape tree

The whole stack in the viewport.

The Tape tree lists every shape and its modifiers in the order they apply. Click a row to select it, drag a cutter onto another shape to move it there, and right-click a row to change its blend and rounding. + Add and + Mod add shapes and modifiers.

A cutter row dragged onto another shape in the Tape tree
Modifier handles

Handles for modifiers.

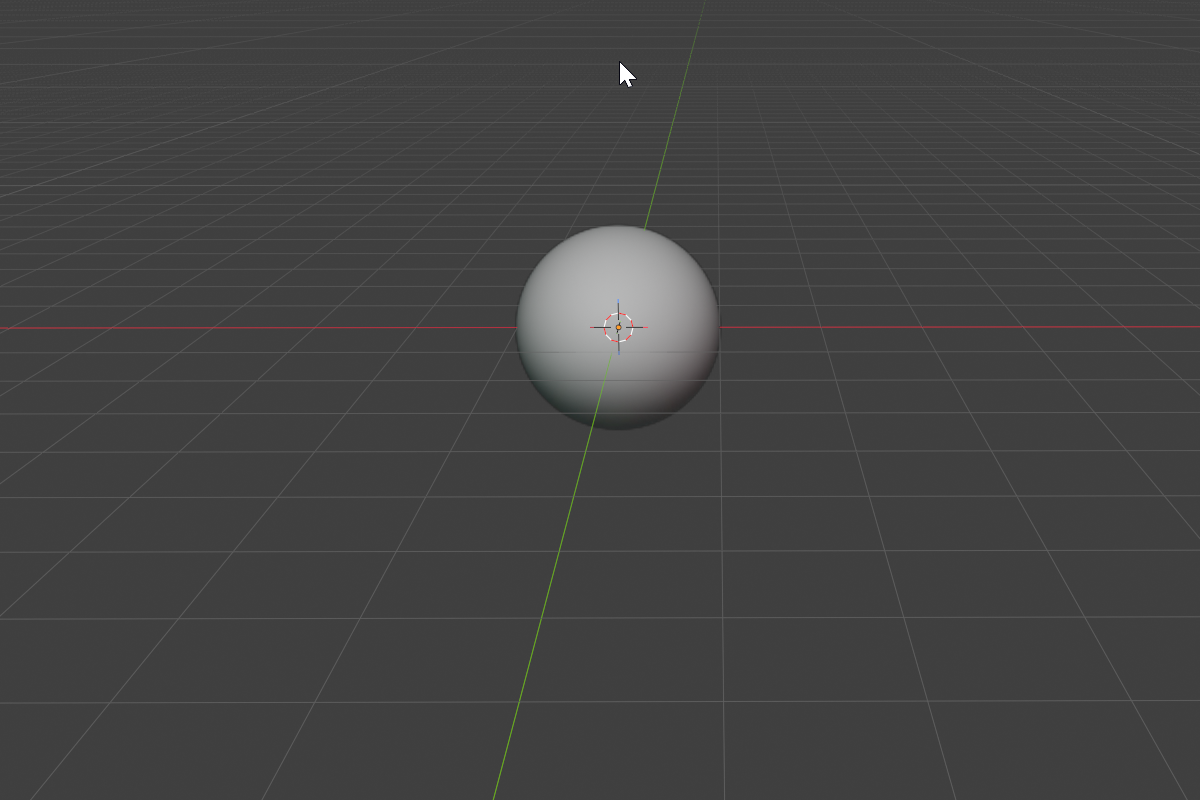

Bisect, Array, Bend, Twist, Solidify, Sweep and Lattice now have handles on the selected shape. Drag the spacing and count of an array, tilt or flip a bisect plane, bend a shape from the ends of its axis, or set a shell's thickness with a single dot. Most drags show their value next to the cursor.

The dots of an Array dragged to change its spacing
Cutter outlines

Cutters stay visible.

A cutter no longer disappears from view. It is drawn as an outline in the colour of its join: red for a difference, green for a union, blue for an intersect. Click it to select it, then move, scale or round it, and the result updates.

A cutter selected by clicking where its outline is
New shapes

Rail, Lathe and Text.

A section swept along a path, a profile turned round an axis, and text you can join, cut and round like any other shape.

Made with Chisel

A V8 engine block.

Every part of this block, down to the bolt holes, is built from Chisel shapes and joins. It is rendered with Chisel's F12 renderer and contains no polygons.

A V8 engine block modelled entirely with Chisel SDF shapes
Blender4.5.7+ / 5.x
SystemsWindows · Linux · macOS
RendererGPU ray marching
Shapes15 + any mesh

Model in math. Keep every edit live.

Hard-surface parts, mechanical designs and blockouts stay editable, join by join. When you need polygons, convert to a mesh.
